Introducing the EasyIO FS-32 controller
As you may know by now, ACS is the preferred supplier of global leading HVAC controls, field devices and solutions, specifically for the Southern African market. Which is why we are proud to offer the range of EasyIO energy management systems, including the EasyIO FS-32 controller.

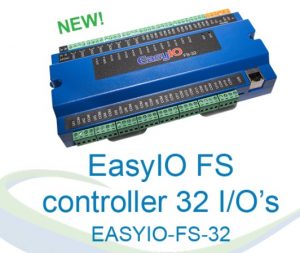

EasyIO FS-32 controller
Offering a 1.2Ghz quad core processor with 512 MB Ram and 8GB flash memory, the FS-32 also offers HTML5 graphics and multi-function adapter widgets. With a VPN client and server specifically built-in, you can be sure of safe connectivity as well.
With 32 points you’ll find the following Inputs & Outputs:
- Universal Input 16xUI
- 12-Bit ADC (with PGA)
- 5 modes
- Digital mode: voltage free contact input.
- Resistance mode: input range 500 – 500 KOhm.
- Voltage mode: input range 0-10V
- Current mode: input range 0-20mA.
- Pulse count mode:
- maximum pulse frequency: 20Hz
- Digital output 8xDO (with LED’s for status)
- Relay output with contact rating 1A 30VDC
- Universal Output 8xUO
- 3 modes
- Voltage mode: output range 0-10V.
- Current mode: output range 0-20mA.
- Digital mode:
- maximum sinking current 200mA
The controller supports BACnet, Modbus, SOX, Haystack and TCOM and the CPT Tools make it easy to programme. Some of the other characteristics include:
- 1 x 10/100 Ethernet Port
- 2 x RS485
- 16 x Universal Inputs
- 8 x Digital Relay Outputs with LED for Status
- 8 x Universal Outputs (200mA sink for switching relays)
ACS Helps you control your world. So to find out more about this and other HVAC & BMS Solutions, give us a call today!
